Description
OBD2 All System Diagnostic Scanner

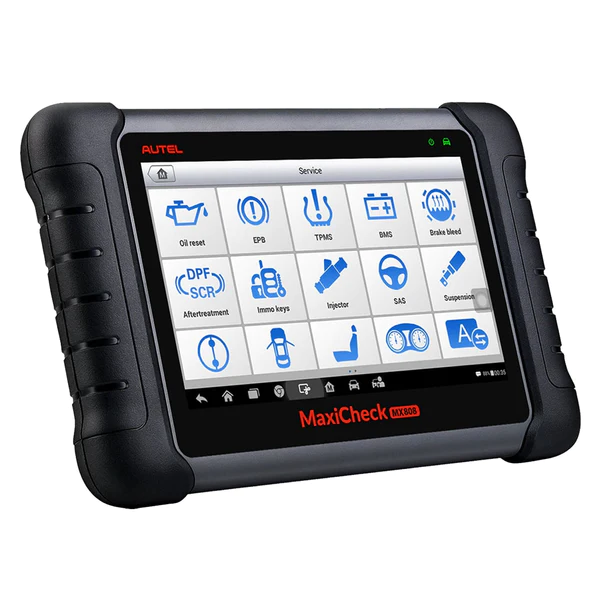

When it comes to ultra-portability, MaxiCheck MX808 is your perfect companion. Installed with a fast quad-core processor, MX808 offers maximum convenience and swift diagnosis. The intuitive user interface makes using the device effortless through a 7-inch LCD touch screen that displays at 1024×600 quality.
Recommended Use – Indoor
Operating System – Android™ 4.4.4, KitKat
Processor – Cortex-A9 processor(1.6 GHz)
Memory – 64GB
Display – 7-inch LCD capacitive touchscreen with 1024×600 resolution
Connectivity – Mini USB 2.0
USB2.0
Wi-Fi
HDMI Type A
Micro SD card slot(supports up to 32GB)
Sensors – Light sensor for brightness auto adjust
Audio input/output – Input: N/A
Output: buzzer
Power and Battery – 3.7 V/5000 mAh lithium-polymer battery
Charges via 5 VDC power supply
Tested Battery Life – Around 7 hours of continuous use
Battery Charging Input- 5V/1.5A
Power Consumption – 600 mA(LCD on with default brightness,Wi-Fi on)@3.7 V
Operating Temp – -10to60°C(14to140°F)
Storage Temp – -20to70°C(-4to158°F)
Operating Humidity – 5%-95%non-condensing
Dimensions(WXHXD) – 270.8mm(10.0)X176.0mm(6.9)x36.0mm(1.4)
Net Weight – 885g(2.31|b.)
Protocols – ISO9141-2,ISO14230-2,ISO15765,K/L-Line,Flashing Code,
SAE-J1850 VPW,SAE-J1850PWM,
ISo11898(Highspeed,Middlespeed,Lowspeed and Singlewire CAN,fault-tolerant CAN)
SAE J2610,GM UART UART Echo Byte Protocol
Honda Diag-H Protocol,TP2.0,TP1.6
